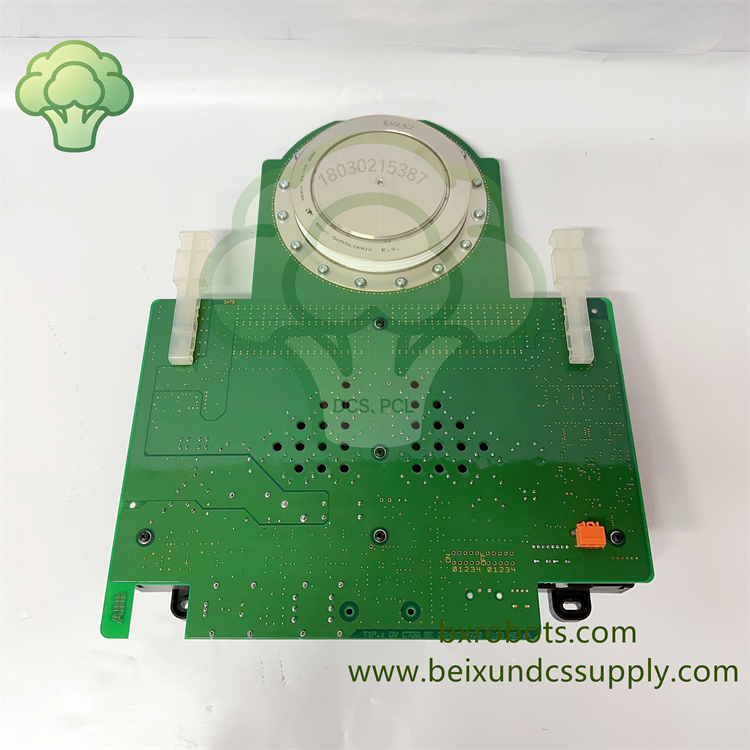

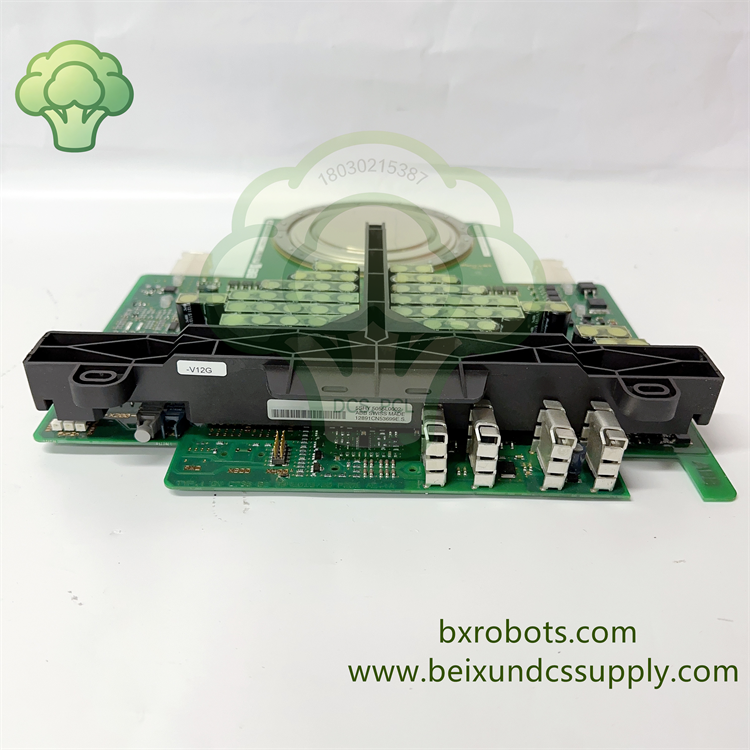

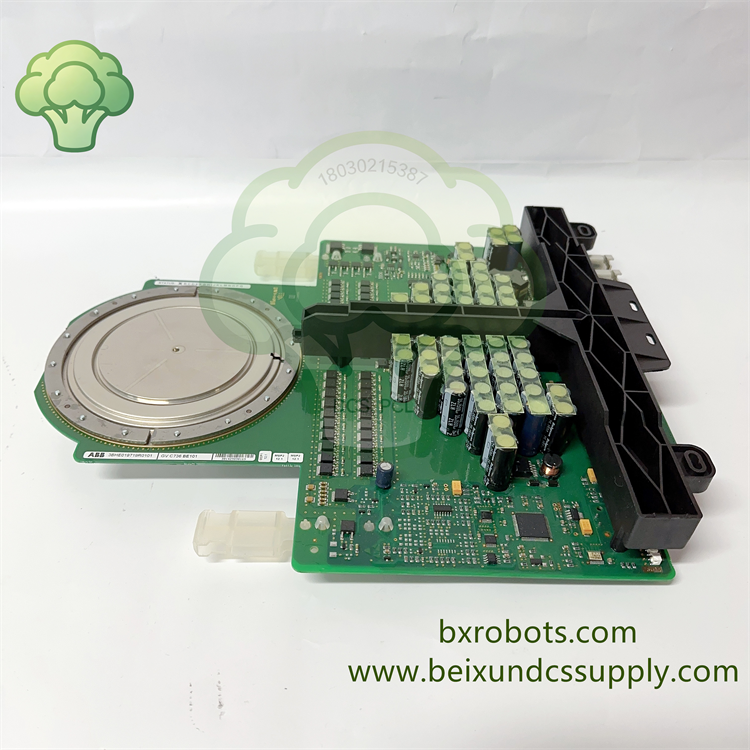

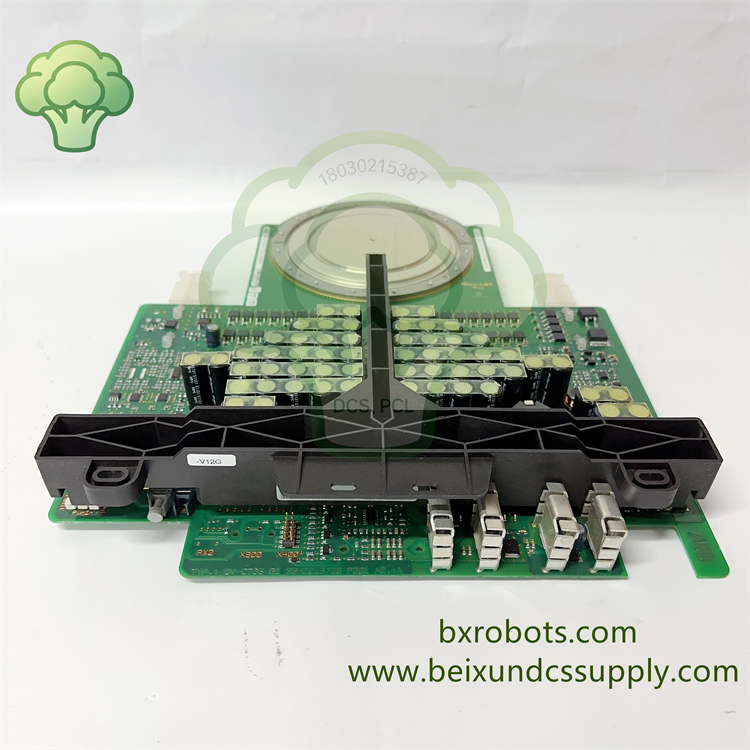

GVC736BE101 为一体化 IGCT 功率驱动板卡，板载 5SHY5055L0002 5500V 大功率 IGCT 半导体，集成门极驱动回路、RC 缓冲吸收电路、多维度故障检测回路，是高压变频、同步发电机励磁系统核心功率执行模块，实现大功率整流、逆变电能变换与可控开关动作。 GVC736BE101 is an integrated IGCT power drive board equipped with 5500V high-power IGCT semiconductor 5SHY5055L0002. It integrates gate drive circuit, RC snubber circuit and multi-dimensional fault detection circuit. As the core power execution module of medium voltage drive and synchronous generator excitation system, it realizes high-power rectification, inversion energy conversion and controllable switching action.

ABB GVC736BE101,5SHY5055L0002,3BHE019719R0101,IGCT 驱动板，ACS5000 变频器备件，高压功率模块，发电机励磁功率单元

ABB GVC736BE101, 5SHY5055L0002, 3BHE019719R0101, IGCT drive board, ACS5000 drive spare parts, medium voltage power module, generator excitation power unit

1. 大功率可控开关：搭载 5SHY5055L0002 IGCT 器件，实现高压大电流快速通断，完成整流、逆变功率变换

1. High-power controllable switch: Adopt 5SHY5055L0002 IGCT device to realize fast switching of high voltage and large current, and complete rectification and inversion power conversion.2. 集成门极驱动：内置驱动放大电路，输出精准触发脉冲，稳定控制 IGCT 开通、关断时序

2. Integrated gate drive: Built-in drive amplifier circuit outputs precise trigger pulses to stably control IGCT turn-on and turn-off timing.

3. 实时故障监测：持续采集 IGCT 温度、电流、电压信号，短路、过热、欠压故障时立即封锁脉冲并输出外部告警信号

3. Real-time fault monitoring: Continuously collect IGCT temperature, current and voltage signals. It will immediately block drive pulses and send external alarm signals once short circuit, overheating or undervoltage faults occur.
