Brand: Original ABB Switzerland, dedicated I/O board for UNITROL generator excitation control series品牌：ABB 瑞士原厂，UNITROL 同步发电机励磁控制系列专用数字 IO 板卡Model: UAC383AE01型号：UAC383AE01Part No.: HIEE300890R0001物料编号：HIEE300890R0001Product Type: 16-Channel Opto-Isolated Digital Input Interface Module产品类型：16 通道光电隔离型数字量输入接口模块Compatible System: ABB UNITROL 5000, UNITROL 6000 static excitation control system, match PPC905AE101 / PPC907BE101 main processor适配系统：ABB UNITROL5000、UNITROL6000 静态励磁控制系统，配套 PPC905AE101/PPC907BE101 主控处理器Mounting Method: Standard AC800PEC rack rear double connector plug-in installation安装方式：标准 AC800PEC 机架前后双接口插拔式安装

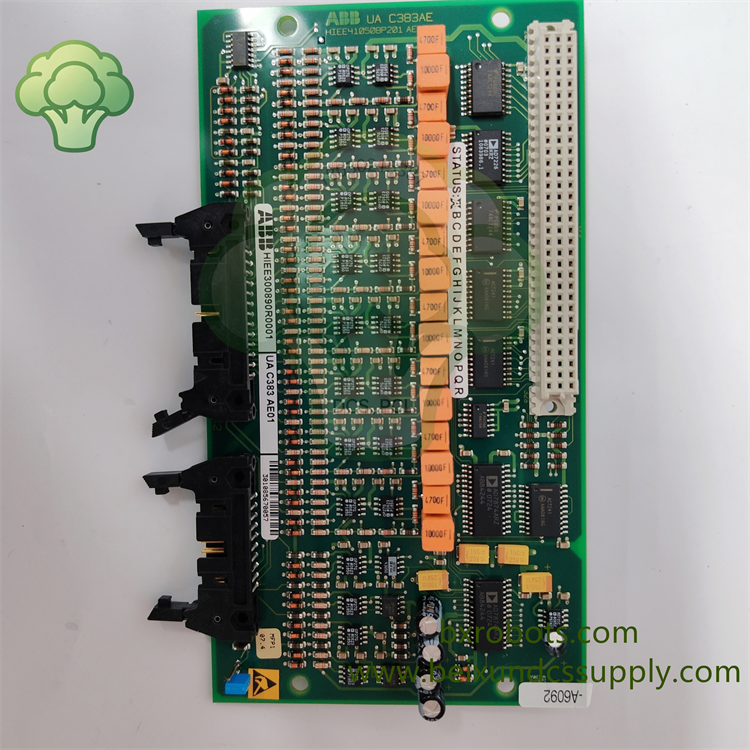

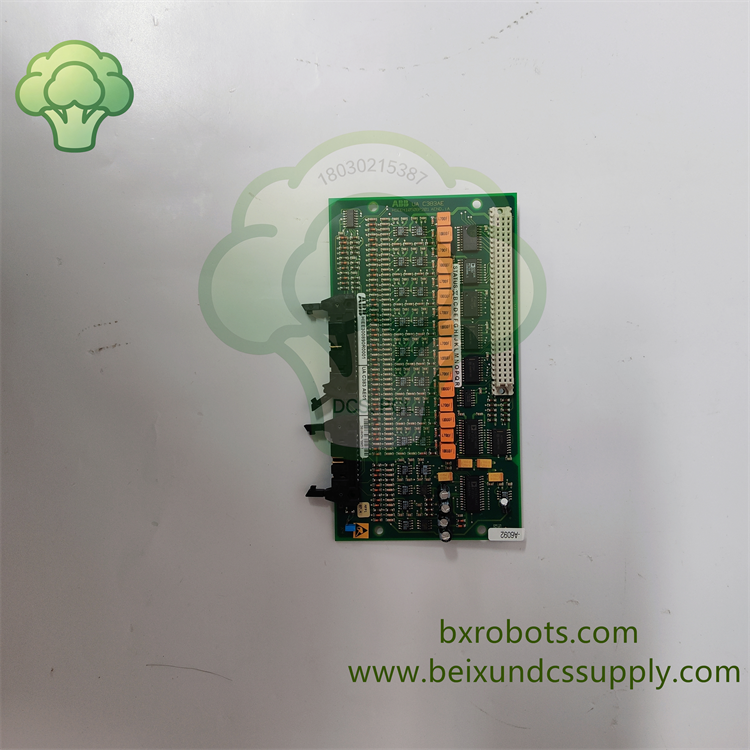

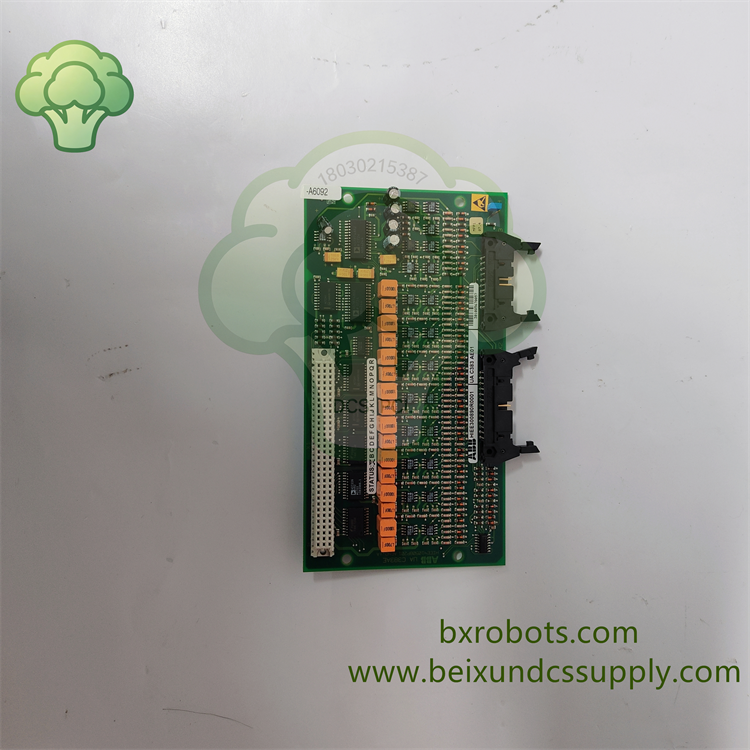

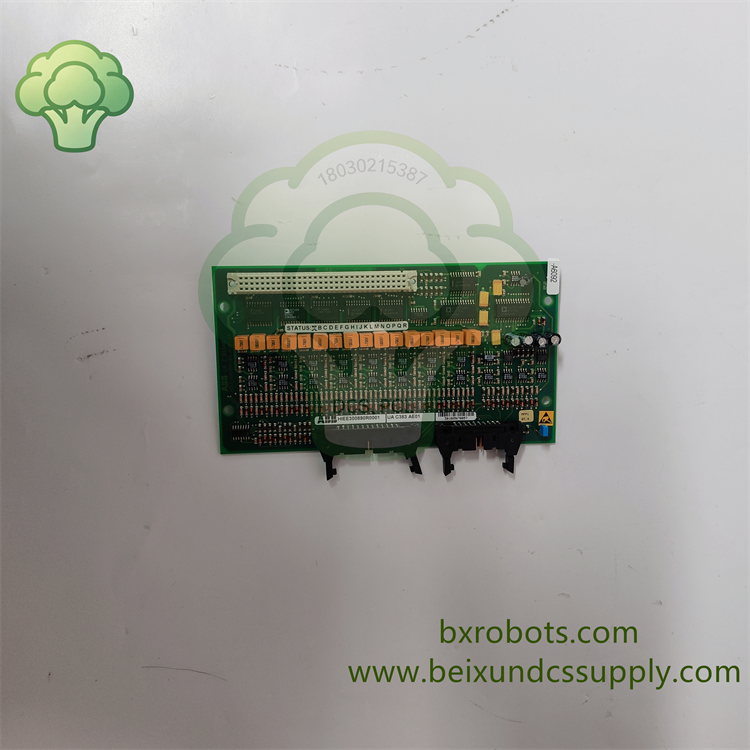

UAC383AE01 HIEE300890R0001 is the standard digital signal acquisition board for UNITROL excitation cabinets, equipped with 16 independent optocoupler isolated digital input channels, evenly divided into two groups of 8 channels each with separate power supply monitoring circuits. It collects field binary signals including generator circuit breaker auxiliary contacts, excitation switch status, turbine trip command, PT/CT fault interlock and synchronizer enable feedback. Optical isolation completely isolates high-voltage secondary circuit interference to avoid control board damage caused by ground loop surge. Real-time voltage monitoring of each group can instantly report wire break and power loss faults to the main processor via VME backplane bus. Full conformal coated PCB with strong anti-vibration and anti-electromagnetic interference performance, it is essential replacement spare part for thermal, hydro and gas power plant generator excitation cabinets.UAC383AE01 HIEE300890R0001 是 UNITROL 励磁控制柜标配数字信号采集板，搭载 16 路独立光耦隔离数字输入通道，平均分为两组 8 通道，每组配套独立供电监测回路。采集发电机断路器辅助触点、励磁开关状态、汽机跳机指令、PT/CT 故障联锁、同期使能反馈等现场开关量信号；光耦隔离彻底隔绝高压二次回路干扰，杜绝地环路浪涌损坏控制板。每组回路实时电压监测，可通过 VME 背板总线向主控即时上报断线、失电故障；全板三防涂层 PCB，抗震、抗电磁干扰性能优异，是火电、水电、燃气电厂发电机励磁柜必备替换备件。
