Basic Information

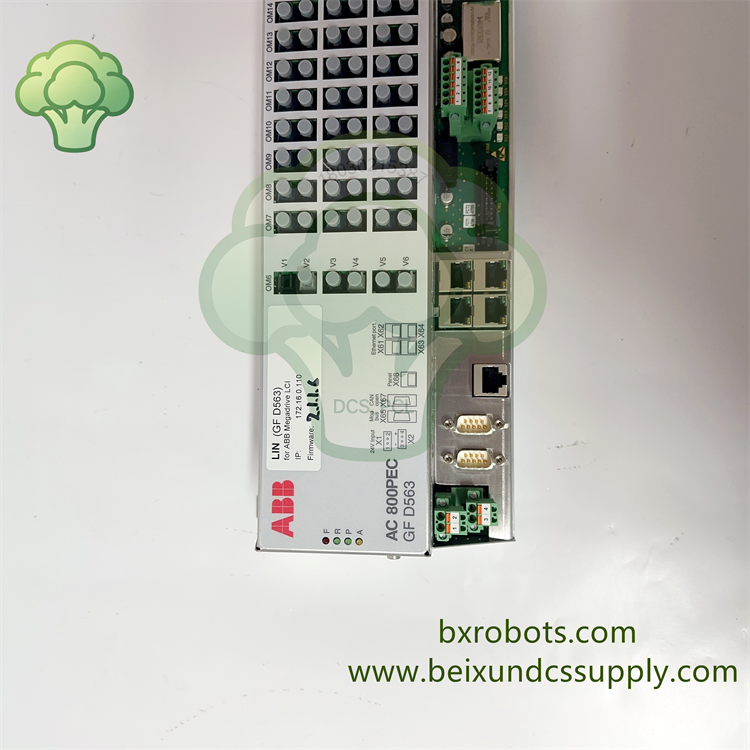

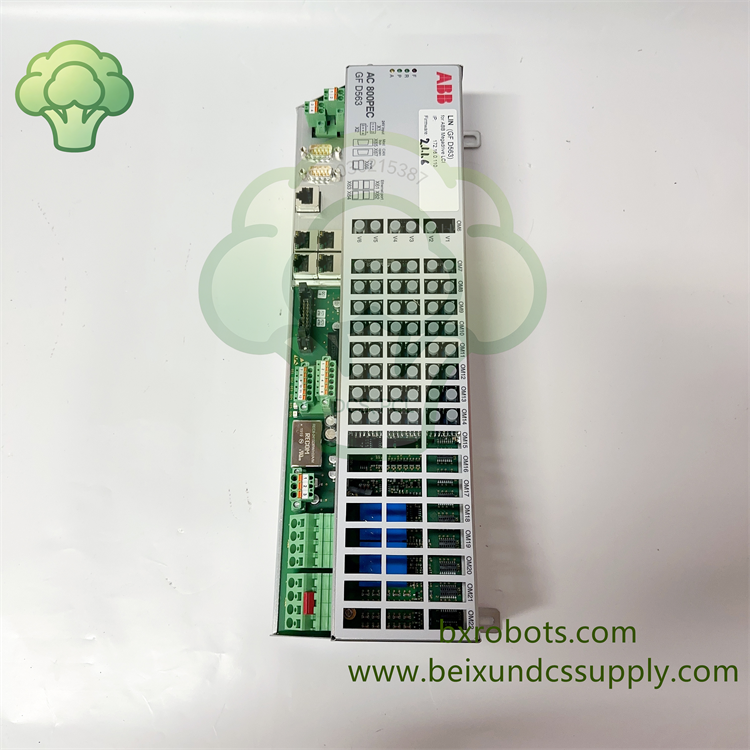

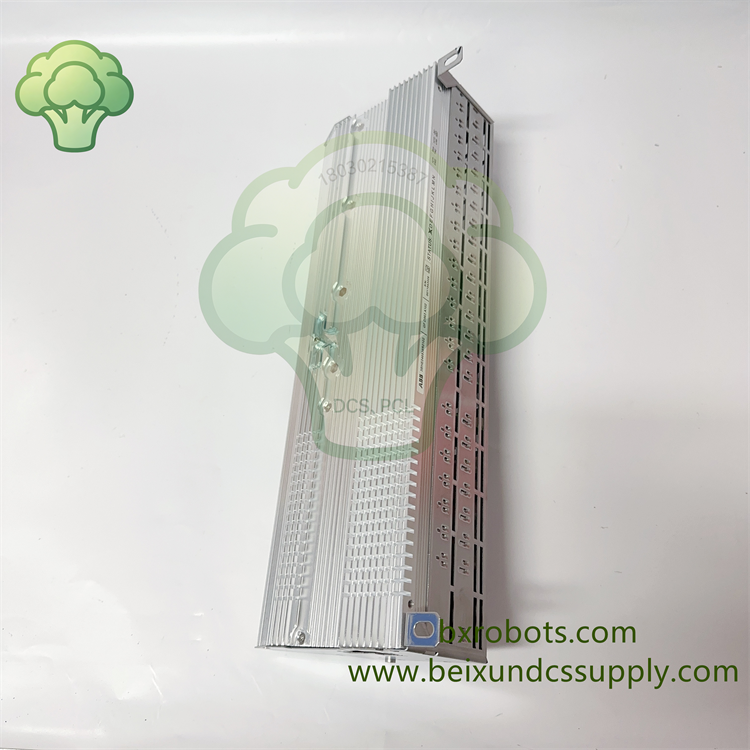

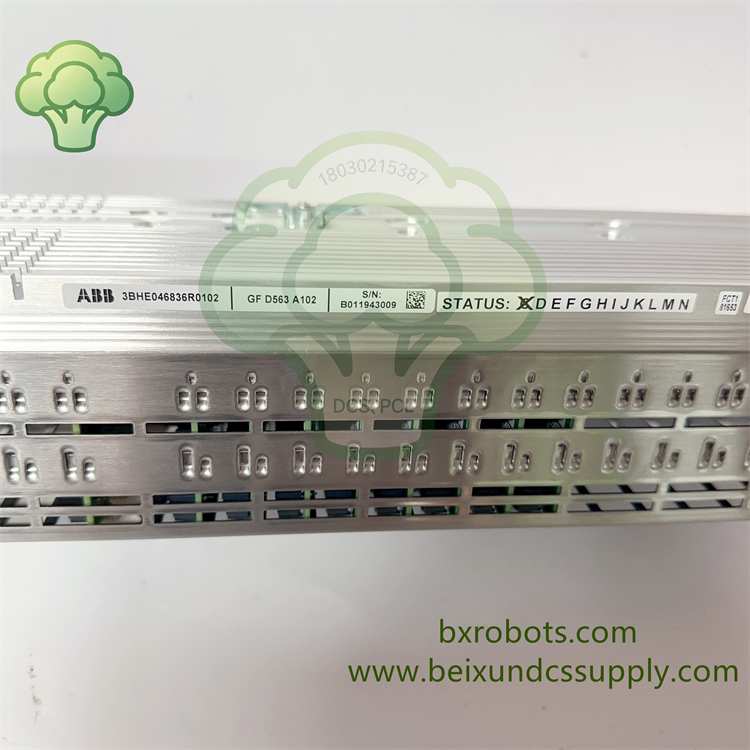

Brand: Original ABB Switzerland, AC800PEC power electronic control series品牌：ABB 瑞士原装，AC800PEC 电力电子控制系列专用板卡Model: GFD563A102型号：GFD563A102Part No.: 3BHE046836R0102物料编号：3BHE046836R0102Product Type: Dual-Core ARM+DSP High-Speed Excitation & Drive Processor Module产品类型：双核 ARM+DSP 高速励磁传动一体化处理器模块Compatible System: ABB AC800PEC controller, UNITROL 5000/6000 generator excitation system, ACS5000 medium voltage drive unit适配系统：ABB AC800PEC 控制器、UNITROL5000/6000 发电机励磁系统、ACS5000 中高压功率传动单元Mounting Method: Standard AC800PEC rack plug-in installation安装方式：标准 AC800PEC 机架插拔式安装
Module Type Introduction
GFD563A102 3BHE046836R0102 is the core main processor of AC800PEC power electronic control platform, equipped with dual-core 1.2GHz ARM Cortex-A9 main processor and independent DSP co-processor for power algorithm operation. It undertakes generator voltage regulation, reactive power balance, synchronous paralleling logic and medium voltage drive rectifier/inverter control. Integrated dual independent Ethernet communication interfaces and rich native I/O channels, it supports dual-module hot standby redundant configuration. Full conformal coated PCB with strong anti-electromagnetic interference performance, it is the core replacement spare part for thermal power, hydropower and chemical plant excitation and high-voltage drive control cabinets.GFD563A102 3BHE046836R0102 是 AC800PEC 电力电子控制平台核心主控处理器，搭载 1.2GHz 双核 ARM Cortex-A9 主处理器与独立 DSP 协处理器专门处理电力算法。负责发电机调压、无功均衡、同步并网逻辑以及中高压传动整流逆变控制；集成双路独立以太网通讯接口与丰富原生 IO 通道，支持双模块热备冗余配置。全板三防涂层 PCB，抗强电磁干扰，是火电厂、水电站、化工厂励磁与高压传动控制柜核心替换备件。
Core Functions
- Dual-core collaborative operation, ARM completes logic scheduling, DSP specializes in high-speed power electronic algorithm calculation
- 双核协同运算，ARM 完成逻辑调度，DSP 专门处理高速电力电子算法
- Dual redundant 10/100M Ethernet ports, support Modbus TCP, IEC61850, PROFINET multi-protocol data interaction
- 双冗余 10/100M 以太网端口，支持 Modbus TCP、IEC61850、PROFINET 多协议数据交互
- Built-in multi-channel AI/AO/DI/DO native I/O, realize real-time sampling and output of excitation and drive process signals
- 内置多通道 AI/AO/DI/DO 原生 IO，实现励磁、传动工艺信号实时采集与输出
- Complete generator excitation control algorithm, automatic voltage regulation, reactive power sharing and synchronization interlock control
- 完备发电机励磁控制算法，自动调压、无功均分、同期并网联锁控制
- Medium voltage drive PWM pulse timing control, stable output trigger timing for IGCT power modules
- 中高压传动 PWM 脉冲时序控制，稳定输出 IGCT 功率模块触发时序
- Hardware full self-diagnosis, real-time monitoring of power, communication, I/O channel and chip operation status with front panel fault LED display
- 硬件全自诊断，实时监测电源、通讯、IO 通道、芯片运行状态，面板故障 LED 显示
- Online remote firmware upgrade via Ethernet, no cabinet disassembly or equipment shutdown required
- 通过以太网远程在线固件升级，无需拆机停机
