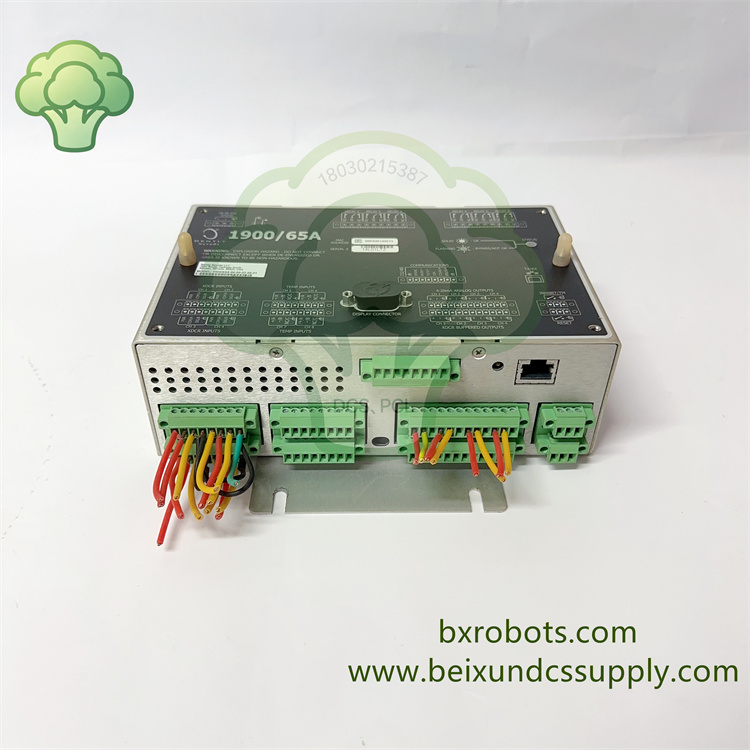

Module Product Introduction

Core Functions

1. 4 路通用振动采集通道，软件兼容电涡流、速度、IEPE 加速度三类传感器，测量轴振、瓦振、轴向位移、转子偏心
2. 4 universal vibration channels, software configurable for proximity, velocity, IEPE accelerometer probes, measure shaft vibration, bearing vibration, thrust displacement & rotor eccentricity
3. 4 路独立温度输入，支持 K/J/E/T 热电偶、2/3 线 RTD 热电阻，监测轴承、壳体、绕组温度
4. 4 independent temperature inputs, compatible with K/J/E/T thermocouple & 2/3-wire RTD for bearing & winding temperature monitoring
5. 6 路可编程无源报警继电器，独立设置预警 Alert / 危险 Danger 两级阈值，支持多通道逻辑表决联锁跳机
6. 6 programmable dry alarm relays, independent Alert/Danger setpoints, multi-channel voting logic for equipment trip interlock
7. 4 路可组态 4~20mA 模拟变送输出，任意测点数据无损上传 DCS/PLC 模拟量模块
8. 4 configurable 4-20mA recorder outputs, transmit any measurement value to DCS analog cards
9. 内置以太网 Modbus TCP 网关，搭配 RS485 Modbus RTU 双通讯，对接 System 1、第三方 SCADA
10. Built-in Ethernet Modbus TCP gateway + RS485 Modbus RTU dual communication, connect with System 1 & third-party SCADA
11. 24bit 高速 ADC，0.5~25kHz 全频采集，4 阶高低通数字滤波，抑制现场电机、变频器谐波干扰
12. 24-bit high-speed ADC, 0.5~25kHz full bandwidth, 8-pole digital filter to eliminate motor & VFD harmonic noise
13. 全通道硬件自诊断，实时识别探头断线、短路、信号超量程、供电异常，面板状态 LED 直观提示
14. Full-channel hardware self-diagnosis, detect probe open/short circuit, over-range & power fault with front status LED indicators
15. 本地 200 条事件日志存储，留存报警动作、旁路、供电波动记录，用于设备故障复盘分析
16. Local 200-event log storage, record alarms, bypass status & power fluctuation for post-failure troubleshooting
17. 每通道独立 BNC 缓冲原始信号输出，便携振动分析仪直连，现场频谱故障诊断
18. Per-channel buffered raw signal BNC output for on-site spectrum fault diagnosis with portable vibration analyzer
