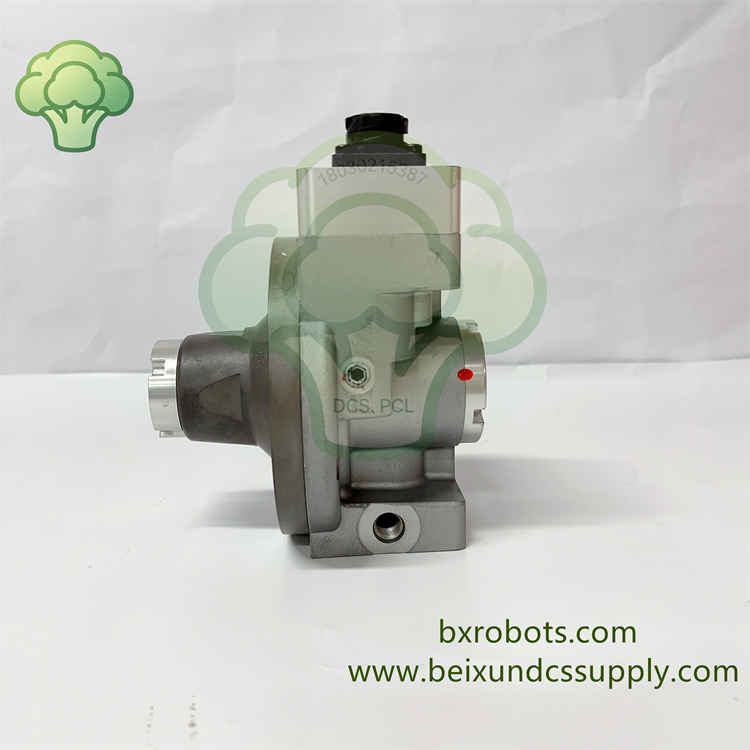

Woodward 5233-2089 发电机组自动同步并网控制模块

Views :

Update time : 2026-07-08

基础信息 Basic Information

品牌：美国伍德沃德 Woodward

Manufacturer: Woodward (USA)

型号：5233-2089

Model: 5233-2089

产品类型：发电机组自动同步并网控制模块

Product Type: Generator Auto-Synchronizer Control Module

适配设备：燃气轮机、蒸汽轮机、柴油 / 燃气发电机组调速调压系统

Compatible Systems: Gas turbine, steam turbine, diesel & gas generator speed/voltage control systems

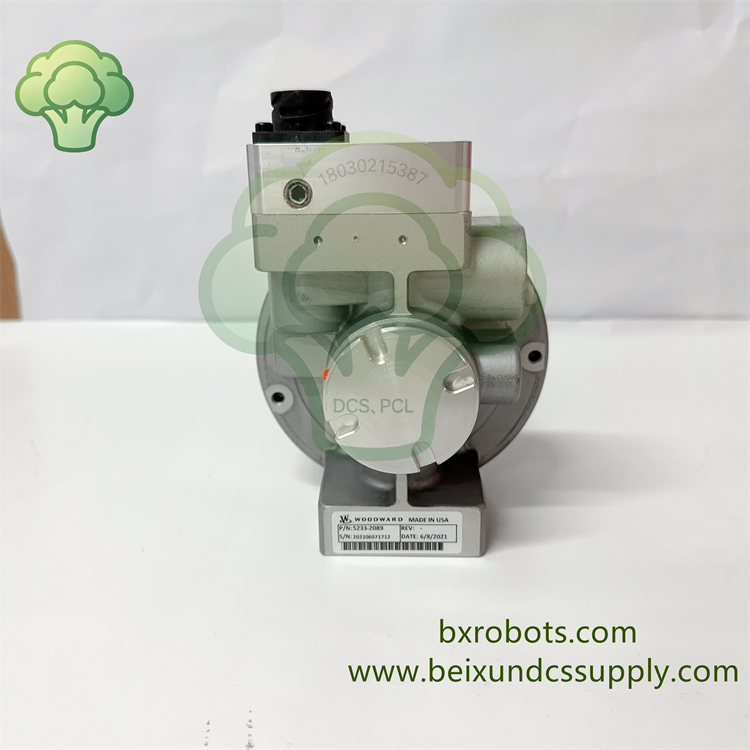

5233-2089 (2).png

核心功能 Core Functions

自动同步并网：自动匹配机组与电网频率、相位、电压，输出调节偏置信号至调速器与励磁调节器
Auto Synchronization: Automatically match frequency, phase and voltage between generator and grid; send bias control signals to governor & AVR
并联负荷均分：具备下垂控制功能，多机组并联时稳定分配有功、无功负荷
Parallel Load Sharing: Droop control & synchronous load balance for multiple parallel generators (active/reactive power distribution)
故障诊断联锁：实时监测压差频差，同步失败闭锁合闸，配套故障报警继电器触点输出
Fault Diagnosis & Interlock: Real-time monitor voltage/frequency deviation; block closing switch if synchronization fails, provide fault alarm relay outputs
信号转换：支持 4–20mA/0–10V 模拟量、干接点开关量双向交互，对接各类 DCS/PLC 系统
Signal Conversion: Bidirectional analog (4–20mA / 0–10V) and discrete dry contact signals for DCS/PLC interconnection

电气规格 Electrical Specifications

供电电源：24VDC 宽压输入（18~32VDC），典型功耗 15W

Power Supply: 24VDC (18~32VDC wide range), typical power consumption 15W

电压采集：三相机组电压、母线电网电压采样输入

Voltage Input: 3-phase generator voltage & bus grid voltage sampling

通讯接口：独立 RS232、RS422 串口，支持 Modbus RTU 协议

Communication Ports: Independent RS232, RS422; Modbus RTU supported

模拟输出：4 路 0–10V/4–20mA 调速、调压控制信号

Analog Output: 4 channels 0–10V / 4–20mA for speed & voltage regulation

数字通道：16 路高速脉冲数字输入，8 路继电器数字输出

Digital Channels: 16DI high-speed counter inputs, 8DO relay outputs

硬件保护：防反接、过压、短路、过频 / 欠频保护

Protection: Reverse polarity, overvoltage, short circuit, over/under frequency hardware protection

环境与机械参数 Environmental & Mechanical Data

工作温度：-40℃ ~ +85℃工业宽温区间

Operating Temperature: -40℃ ~ +85℃ wide industrial range

存储温度：-55℃ ~ +125℃

Storage Temperature: -55℃ ~ +125℃

防护等级：IP20，机柜 DIN 导轨安装

Protection Class: IP20 (DIN rail cabinet mounting)

外形尺寸：185 × 145 × 65 mm

Dimensions: 185 × 145 × 65 mm

认证资质：UL、CE、TUV、Class I Div.2 防爆区域认证

Certifications: UL, CE, TUV, Class I Div.2 hazardous location approval

应用场景 Typical Applications

电厂燃气轮机、蒸汽轮机机组并网控制

Grid synchronization for gas & steam turbine generator sets in power plants

柴油、双燃料发电机组并联控制

Parallel control of diesel /bi-fuel generator units

海上油气平台自备电站同步控制

Onboard power station for offshore oil & gas platforms

分布式能源、微电网多机组协同管控

Distributed energy & microgrid multi-generator coordination
