Basic Information

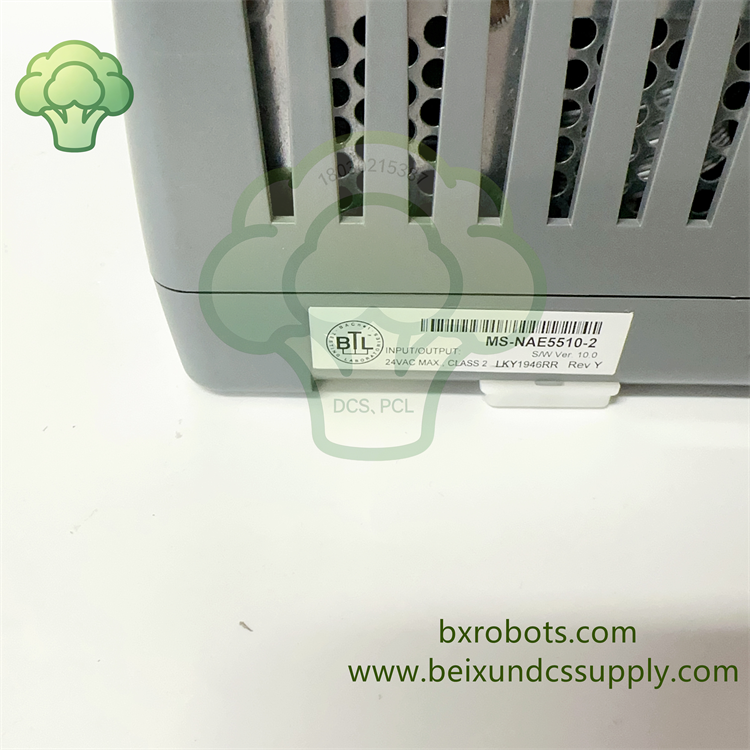

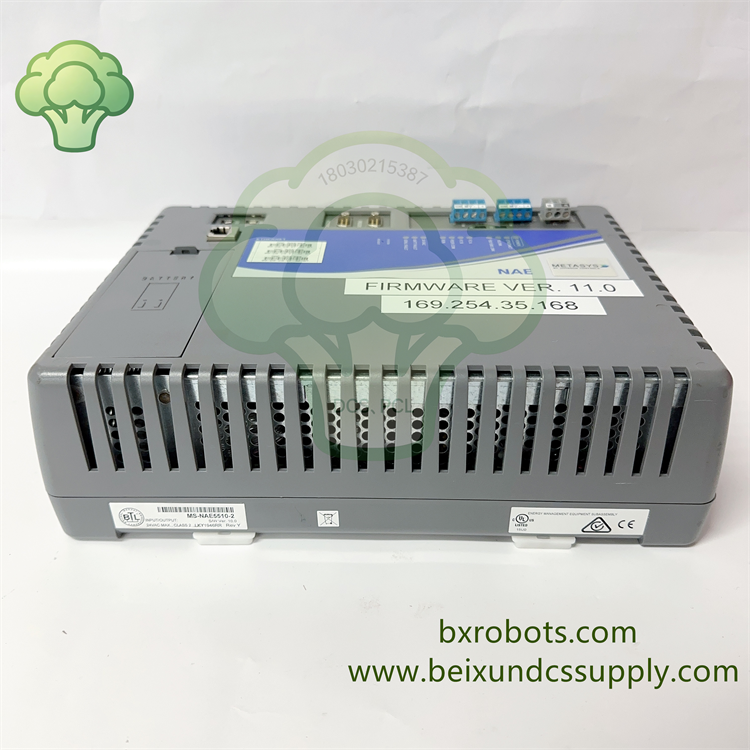

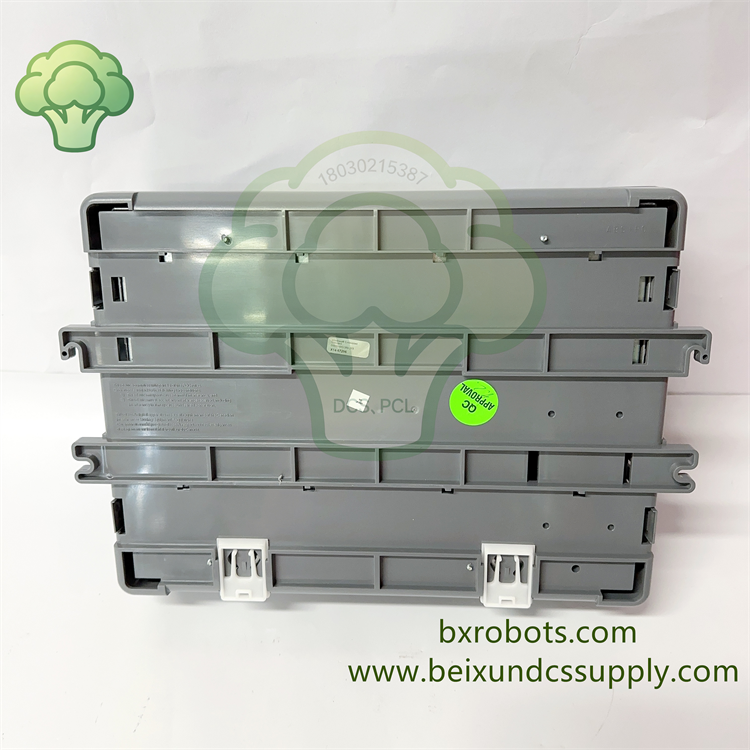

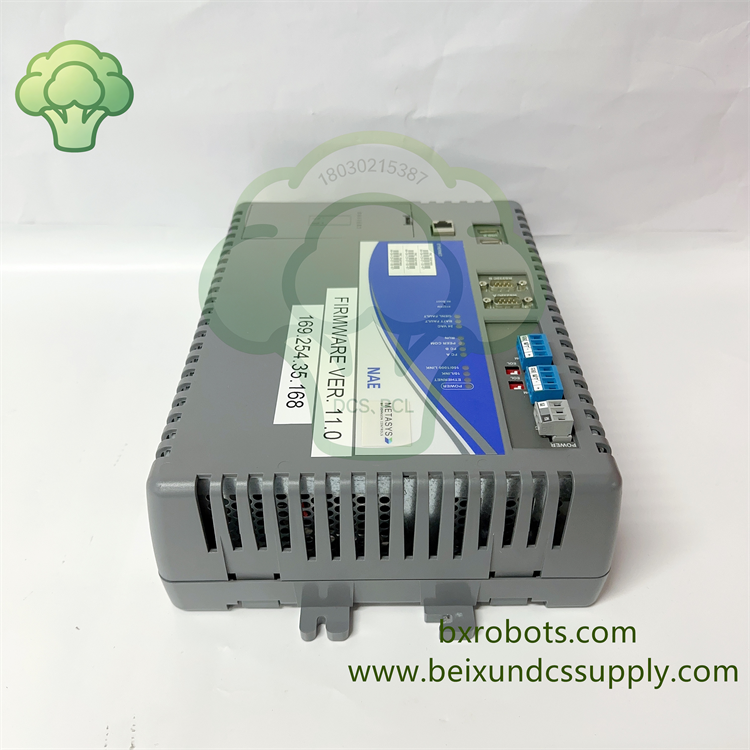

Brand: Johnson Controls Original USA, dedicated supervisory host for Metasys BAS building automation platform品牌：美国江森自控原厂，Metasys 楼宇自控平台专用上位监控主机Model: MS-NAE5510-2型号：MS-NAE5510-2Product Type: NAE55 High-performance Network Automation Supervisory Engine产品类型：NAE55 高性能网络自动化上位监控引擎Compatible System: Johnson Controls Metasys® Building Automation System, match FEC/VMA/VAV field DDC controllers适配系统：江森 Metasys 楼宇自控系统，配套 FEC/VMA/VAV 现场 DDC 控制器Mounting Method: Standard 35mm DIN rail snap-on installation inside mechanical room control cabinet安装方式：标准 35mm DIN 导轨卡扣式安装，机房控制柜内固定
Module Type Introduction
MS-NAE5510-2 is the core supervisory hub of Metasys BAS system, equipped with 1.6GHz Intel Atom embedded processor, 1GB SDRAM + 4GB flash storage. It serves as data exchange center between IP backbone network and field bus equipment, collects real-time operating data of HVAC air conditioners, VAV boxes, lighting panels, fire alarm and access control devices, executes scheduling logic, alarm interlock, energy trend recording and remote web access. Built-in multiple isolated serial communication ports, it seamlessly accesses third-party instruments, power meters and PLC via open industrial protocols. Support multi-unit redundant networking, power failure data backup battery, stable operation for commercial office, hospital, data center and industrial plant building automation systems, core replacement spare part for aging Metasys monitoring hosts.MS-NAE5510-2 是 Metasys 楼宇自控系统核心上位集散枢纽，搭载 1.6GHz Intel Atom 嵌入式处理器，1GB 运行内存 + 4GB 闪存存储。作为 IP 骨干网与现场总线设备的数据交互中枢，采集暖通空调、变风量末端、照明面板、消防门禁设备实时运行数据，执行日程逻辑、报警联锁、能耗趋势存储与网页远程访问功能；集成多路隔离串行通讯端口，通过开放工业协议无缝对接第三方仪表、电表、PLC。支持多机冗余组网，配套断电数据备份电池，稳定应用于商业写字楼、医院、数据中心、工厂厂房楼宇自控系统，是老旧 Metasys 监控主机故障替换核心备件。
Core Functions
- Multi-protocol universal communication integration, support BACnet IP/MS/TP, Modbus TCP/RTU, LonWorks, N2 Bus, M-Bus meter reading
- 多协议通用通讯集成，兼容 BACnet IP/MS/TP、Modbus TCP/RTU、LonWorks、N2 总线、M-Bus 电表采集
- Embedded web server, browser remote login without special client software, real-time view equipment status, curve and alarm records
- 内置网页服务器，无需专用客户端，浏览器远程登录查看设备状态、趋势曲线、报警记录
- Centralized energy management, automatic load scheduling, power consumption statistics, peak-valley energy saving control logic
- 集中能耗管理，自动设备负荷排班、用电量统计、峰谷节能控制逻辑运算
- Full alarm interlock processing, classify fault levels, support remote SMS/upper system alarm forwarding
- 全维度报警联锁处理，故障分级推送，支持短信、第三方上位系统远程告警转发
- Local historical data storage, long-term storage of temperature, humidity, flow, power trend data for energy audit analysis
- 本地历史数据存储，长期留存温湿度、流量、电力趋势曲线，用于能耗审计分析
- Built-in backup battery, maintain real-time clock and configuration data within 3-5 hours after power outage, no parameter loss
- 内置后备蓄电池，断电后 3-5 小时维持时钟与配置文件，参数不丢失
- Multi-unit hot standby networking, seamless master-backup switch, avoid whole building monitoring system offline risk
- 多台机组热备冗余组网，主备无缝切换，杜绝整栋楼宇监控系统离线风险
- Hardware self-diagnosis, front panel LED indicators display Ethernet status, serial bus fault, power abnormality and storage failure
- 硬件实时自诊断，面板 LED 指示灯显示以太网状态、串口总线故障、供电异常、存储故障
