产品类型介绍 Module Type Introduction

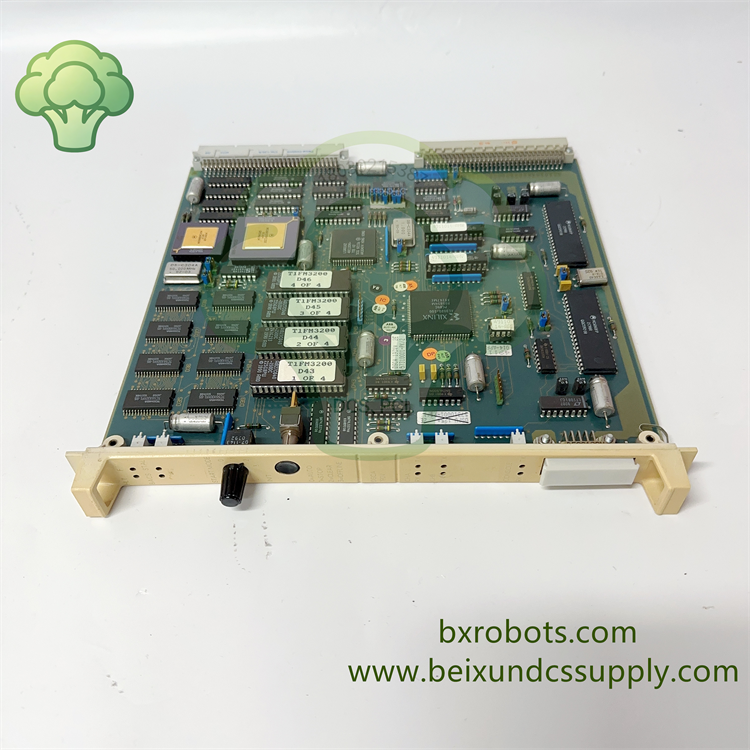

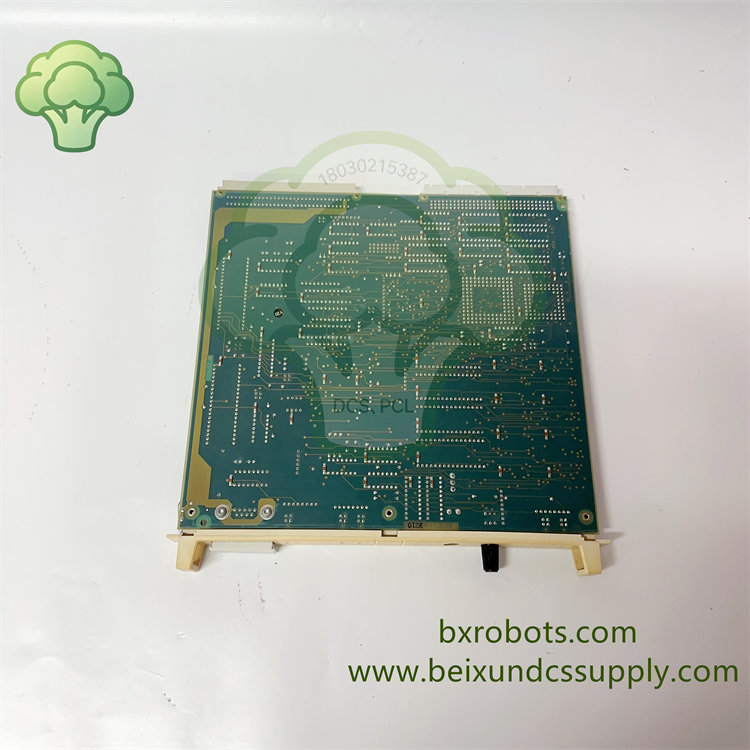

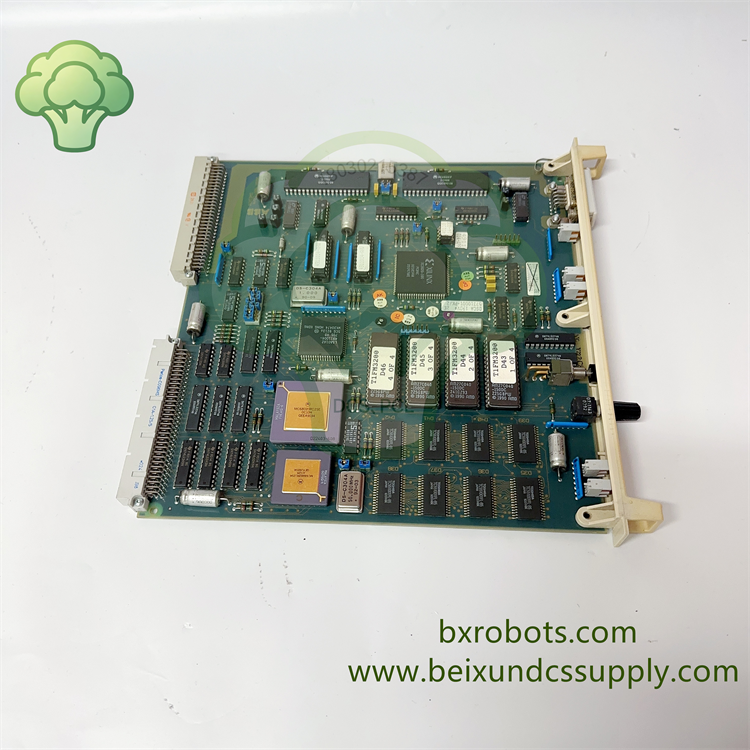

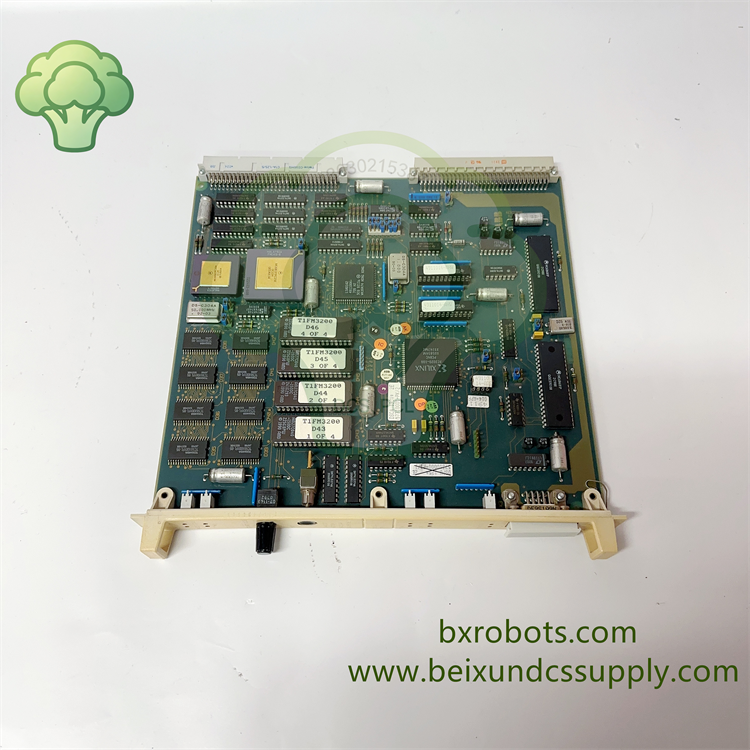

DSCA190V 57310001-PK 是 Advant Master 系统核心通讯处理器板卡，搭载独立实时运算处理芯片与大容量缓存，作为系统数据交互中枢，实现控制器与操作站、远程 IO、第三方 PLC、分析仪之间双向数据传输。板卡集成多组工业通讯接口，支持多种标准工业协议，具备硬件冗余拓展能力，内置完整故障诊断回路，是电厂、化工存量老旧 ABB DCS 系统通讯故障替换核心备件。DSCA190V 57310001-PK is the core communication processor board for Advant Master system, equipped with independent real-time processing chip and large-capacity cache. As the system data exchange hub, it realizes bidirectional data transmission between controller, operator station, remote IO, third-party PLC and analyzers. The board integrates multiple industrial communication interfaces, supports various standard industrial protocols and hardware redundancy expansion. Built-in complete fault diagnosis circuit, it is core spare part for communication failure replacement of aging ABB DCS systems in power plants and chemical plants.
核心功能 Core Functions
- 系统全域数据转发，同步交互控制器工艺参数、报警、趋势数据至 HMI 上位监控画面
- Global system data forwarding, synchronously transmit process parameters, alarms and trend data from controller to HMI monitoring screen
- 多工业协议兼容，支持 Modbus TCP/RTU、以太网、串口总线，对接变频器、在线分析仪、第三方控制系统
- Multi-industrial protocol compatibility, support Modbus TCP/RTU, Ethernet and serial bus to connect VFDs, online analyzers and third-party control systems
- 高速实时数据扫描，8ms 完成全部通道数据刷新，保障闭环控制、联锁信号无延迟传输
- High-speed real-time data scanning, full channel data refresh within 8ms to ensure delay-free transmission of closed-loop control and interlock signals
- 支持双模块冗余热备，主通讯卡故障时备卡毫秒级无缝切换，生产过程通讯不中断
- Dual-module hot standby redundancy supported, backup module takes over within milliseconds without communication interruption upon master card failure
- 全硬件自诊断监测，面板 LED 指示灯实时显示总线断线、通讯异常、芯片故障、背板供电异常
- Full hardware self-diagnosis monitoring, front panel LED indicators display bus break, communication error, chip failure and backplane power abnormality in real time
- 本地固件在线升级，通过上位通讯端口远程更新程序，无需停机拆卸板卡
- Local firmware online upgrade, remote program ｕｐｄａｔｅ via upper communication port without shutdown or board disassembly
- 16 通道模拟量信号协同采集，支持 ±10V、4-20mA 标准工业信号，通道量程独立配置
- 16-channel analog signal synchronous acquisition, compatible with ±10V, 4-20mA standard industrial signals, independent range configuration per channel
电气参数 Electrical Specifications
背板供电：5.1VDC 机架背板供电，工作电流 800mABackplane Power Supply: 5.1VDC rack backplane power, operating current 800mA整机功耗：≤5WTotal Power Consumption: ≤5W以太网规格：10/100M 自适应 RJ45 以太网接口Ethernet Specification: 10/100M auto-adaptive RJ45 Ethernet port模拟输入量程：±10V DC、0~20mA DC 可选Analog Input Range: ±10V DC, 0~20mA DC optional输入阻抗：100kΩ 高阻抗输入，降低现场信号损耗Input Impedance: 100kΩ high impedance input to reduce field signal loss硬件防护：电源反接、总线浪涌、静电 ESD、电磁干扰多级隔离保护Hardware Protection: Multi-stage isolation protection against reverse power, bus surge, ESD and electromagnetic interference单模块最大连接点位：32 路外部设备连接通道Max External Device Connections Per Module: 32 external device channels
机械与环境参数 Mechanical & Environmental Data
外形尺寸：243 × 27 × 337.5 mmOverall Dimensions: 243 × 27 × 337.5 mm整机重量：约 0.452kgTotal Weight: Approx 0.452kg防护等级：IP20，仅限控制柜室内安装Protection Class: IP20, only for indoor cabinet installation工作温度：0℃ ~ +55℃Operating Temperature: 0℃ ~ +55℃存储温度：-40℃ ~ +70℃Storage Temperature: -40℃ ~ +70℃相对湿度：5%~95% RH，无冷凝Relative Humidity: 5%~95% RH, non-condensingPCB 工艺：全板三防涂层，防尘、抗震、抗工业强电磁干扰PCB Process: Full conformal coated, dust-proof, anti-vibration and anti-industrial strong EMC interference认证资质：CE、UL、IEC61131 工业自动化标准Certifications: CE, UL, IEC61131 industrial automation standards
