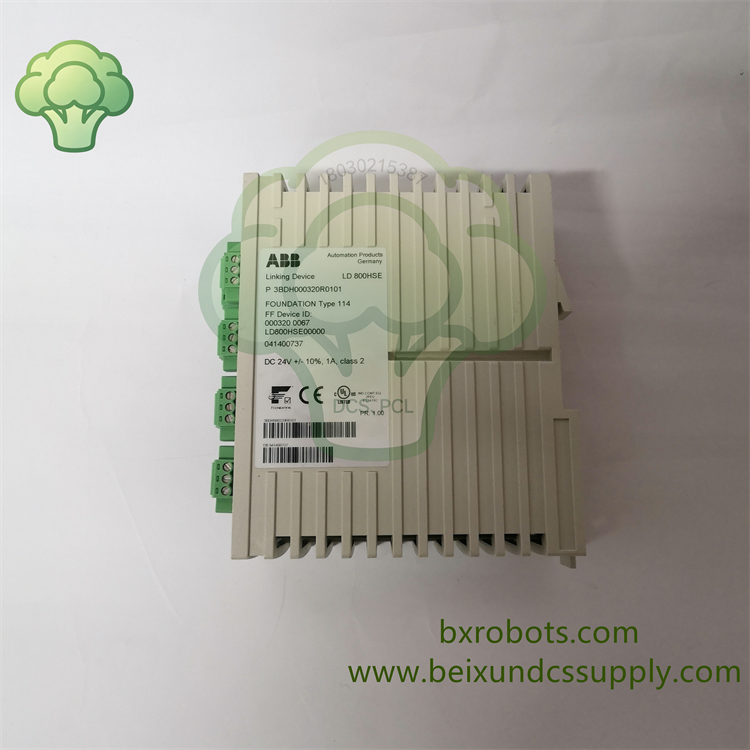

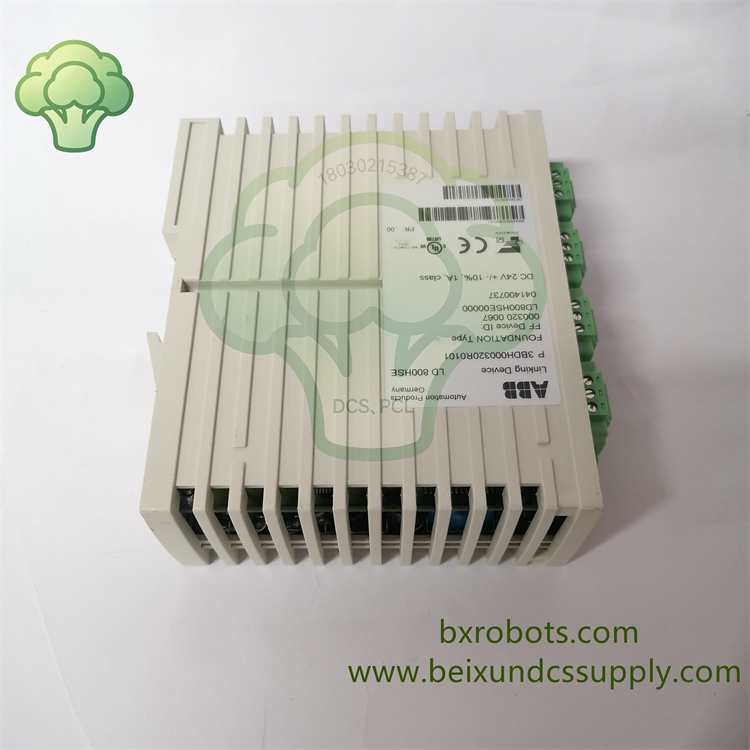

基础信息 Basic Information
品牌：ABB 瑞士原装，Industrial IT Freelance 系列总线设备Brand: Original ABB Switzerland, Industrial IT Freelance series fieldbus equipment型号：LD800HSE，物料编码 3BDH000320R0101Model: LD800HSE, Part No.3BDH000320R0101产品类型：FOUNDATION Fieldbus HSE-H1 总线链接网关（Linking Device）Product Type: FOUNDATION Fieldbus HSE to H1 Fieldbus Linking Gateway适配系统：ABB Freelance 800F、800XA DCS 分布式控制系统Compatible System: ABB Freelance 800F, 800XA distributed control system安装方式：标准 35mm DIN 导轨卡扣式安装Mounting: Standard 35mm DIN rail snap-on installation
产品类型介绍 Module Type Introduction
LD800HSE 是符合 Fieldbus Foundation 42c 等级认证的 FF 总线网关，作为 HSE 高速以太网与 FF H1 现场总线的数据交互桥梁，集成 4 路独立 H1 总线主站 LAS，单台最多挂载多路两线制 FF 现场仪表，支持跨链路数据转发、事件报警分发。设备支持双机冗余架构，主备毫秒级无扰切换，保障化工、油气防爆区域总线通讯不间断，是 Freelance 系统 FF 现场仪表组网扩容、故障替换核心通讯备件。LD800HSE is FF bus gateway certified to Fieldbus Foundation Class 42c, acting as data bridge between HSE high-speed Ethernet and FF H1 fieldbus. It integrates 4 independent H1 link master LAS, supports multiple 2-wire FF field instruments per unit, cross-link data republishing and alarm event distribution. Dual device redundant architecture is supported with seamless millisecond-level master-backup switch to guarantee continuous bus communication in chemical and oil & gas hazardous areas. It is core communication spare part for FF instrument network expansion and failure replacement of Freelance system.
核心功能 Core Functions
- HSE 与 FF H1 协议双向转换，1 路自适应 10/100M 以太网，4 路隔离 31.25kbit/s FF H1 总线
- Bidirectional protocol conversion between HSE and FF H1, 1 auto-adaptive 10/100M Ethernet port, 4 isolated 31.25kbit/s FF H1 channels
- 四路独立 LAS 链路活动调度器，每路 H1 总线独立周期调度发布 / 订阅数据，互不干扰
- Four independent LAS Link Active Scheduler, each H1 link runs independent publish/subscribe cycle without mutual interference
- 跨链路数据转发，支持 H1 总线间、H1 与 HSE 子网周期数据互传，无需控制器中转
- Cross-link data republishing, realize cyclic data exchange between H1 links and H1-HSE subnet without controller forwarding
- 完整双机冗余热备，配套 RS232 冗余通讯线，主设备故障备机自动接管总线，零通讯中断
- Full dual-unit hot standby redundancy with RS232 redundancy cable, backup device takes over bus automatically without communication interruption upon master failure
- 透明远程组态，上位系统直接读取、修改所有 H1 现场设备功能块参数，支持 DD 文件设备管理
- Transparent remote configuration, host system directly read and edit function block parameters of all H1 field devices, support DD file device management
- 实时硬件自诊断，面板 LED 显示总线断线、短路、设备失联、冗余异常，上传系统故障告警
- Real-time hardware self-diagnosis, front panel LED indicates bus break, short circuit, device offline and redundancy fault, upload alarm signals to control system
- 本地固件在线升级，通过 HSE 以太网远程下载更新程序，无需拆机停机
- Local firmware online upgrade, remote program download via HSE Ethernet without disassembly or system shutdown
电气参数 Electrical Specifications
供电电源：24VDC（±20% 宽压），典型工作电流 200mA，整机功耗 4.8WPower Supply: 24VDC (±20% wide range), typical operating current 200mA, total power consumption 4.8WHSE 以太网接口：RJ45 10BASE-T/100BASE-TX，速率自适应HSE Ethernet Port: RJ45 10BASE-T/100BASE-TX, auto speed sensingFF H1 总线接口：4 路隔离端子，传输速率 31.25kbit/s，变压器电气隔离FF H1 Bus Ports: 4 isolated terminal ports, 31.25kbit/s transmission rate, transformer galvanic isolation冗余通讯接口：9 针 Sub-D RS232，用于双 LD800HSE 冗余数据交互Redundancy Communication Port: 9-pin Sub-D RS232 for dual LD800HSE redundancy data exchange硬件防护：电源反接、总线浪涌、短路、静电 ESD 多级隔离保护Hardware Protection: Multi-stage isolation protection against reverse power, bus surge, short circuit and ESD
